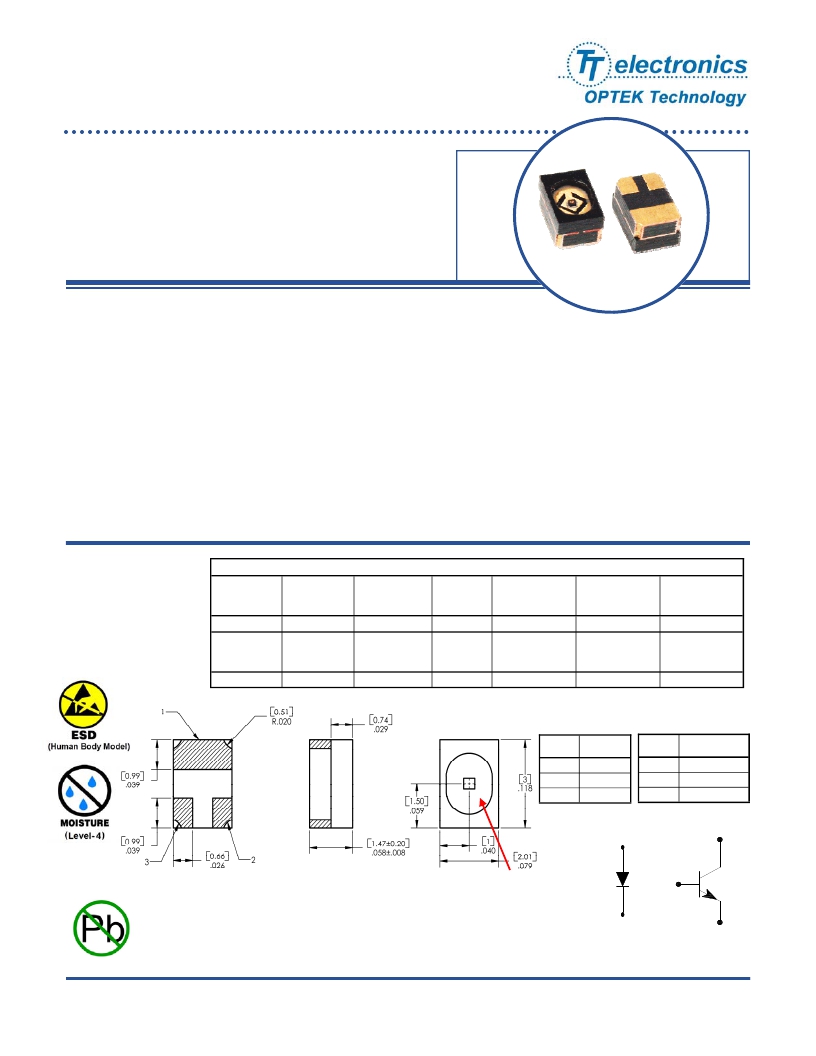

Miniature Surface Mount
LED—OPR5200
Phototransistor—OPR5500
Features:
?
?
?
?
Stackable on 2 mm centers
Vertical or horizontal mounting
Automatic pick-and-place compatible
Combine OPR5200 and OPR5500 to create miniature switch
Description:
The OPR5200 is a miniature high efficiency GaAIAs light emitting diode in a high temperature polyamide chip
carrier that is well suited to space-limited applications which require close channel spacing.
The OPR5500 is a miniature NPN silicon phototransistor housed in a high temperature polyamide chip carrier that
is well suited to space-limited applications which require close channel spacing.
When combing the OPR5200 and OPR5500 (miniature phototransistor), this lateral mounting option can be used
to create a non-focused reflective or slotted switch configuration.
These parts can be automatically placed with standard SMD equipment and can be reflow soldered by virtually
any conventional means. Wraparound contacts allow it to be mounted face up or on edge for a beam direction
parallel to the seating plane.
See Application Bulletin 237 for handling instructions
Applications:
Ordering Information
?
?
?
Slotted switches
Industrial environments
Space-limited applications
Part
Number
OPR5200
LED Peak
Wavelength
890 nm
Output Power
(μW) Min
350
I F (mA)
Typ / Max
20 / 50
Total Beam
Angle
(Degrees)
90
Rise / Fall
Times (nS) Typ
500 / 250
Packaging
Chip Tray
Part
Number
Sensor
Light Current
I C(ON) (μA) Min
V CE
Max
Input Power E E Viewing Angle
(μW/cm 2 ) (Degrees)
Packaging
OPR5500
Transistor
36
30
150
120
Chip Tray
OPR5200
OPR5500
Pin #
LED
Pin # Transistor
1
2
3
Anode
Cathode
N.C.
1
2
3
Collector
Emitter
Base
1
1
Collector
NPN
TOLERANCE IS ± .005 [0.13]
DIMENSIONS ARE IN:
[MILLIMETERS]
INCHES
Warning : Front
Window is pressure
sensitive. Do not
apply pressure or
3
3
Base
Trans.
Emitter
high vacuum to
window.
2
2
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue B 03/2012
Page 1 of 3
